Band in a row in the form of aluminum roll sheet material is arranged in various forms required when rollforming system passes through the rollers in the form takes shape into the profile. resources as the source when switching from a profile that becomes rigid welded.

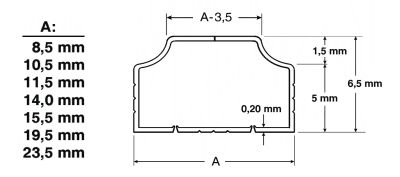

1. PROFILE WIDTH:  9 - 11 - 12 -14,5 - 16 - 24 mm
0.5 mm from the aforementioned gap between the more narrow; 9 mm için 8.5 mm, 11 mm için 10.5 mm, 12 mm için 11.5 mm, 16 mm için 15.5 mm wide, 6,5 mm high.
2. RAW MATERIAL: Roll in, 0,20 - 0,30 mm (or according to another in thickness) with special alloys, the tape from the roll sliced.Roll in, 0.20 - 0.30 mm (or according to another in thickness) with special alloys, aluminum coil strip sliced from the rolls of sheet.

                  TECHNICAL SPECIFICATIONS :

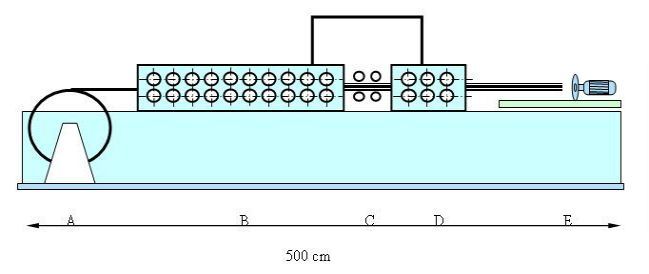

A- Roll Materials Carrier:
The desired width, the rolls 500 mm diameter holes for mounting machine is material.
B- Band in the form of sheet material is shaped in a row arrangement of the roller machine rollforming system.
Machine max. speed: 70 m/d,
C- Shaped profile welded high-frequency induction machine, 20 - 25 KW. Induction machine with water cooling of electronics is required.This is necessary for the water tank, water pump and cooling of the cooling system must be installed.
D- Rectifier: Source that prevents the deformation of the profile and resources to ensure smoothness and to the iron will be provided.
E- Saw: With an automatic saw cutting processes of the profile height will be made. Walking on the top of the packaging material before, and will accumulate in the table included in the price is 6 m long. If you are prompted to take a profile on the machine can be done, to take other profiles must be replaced by a group of roller rollforming. Other profiles separately for each profile for rollforming system also is produced and the main body block sitting on top of the machine by fix.
